SA400 Pressure Mud Pump

The SA400 is a high-pressure mud pump powered by a Tier 4i (EU Stage IIIB) or Tier 3 (EU Stage IIIA) engine.

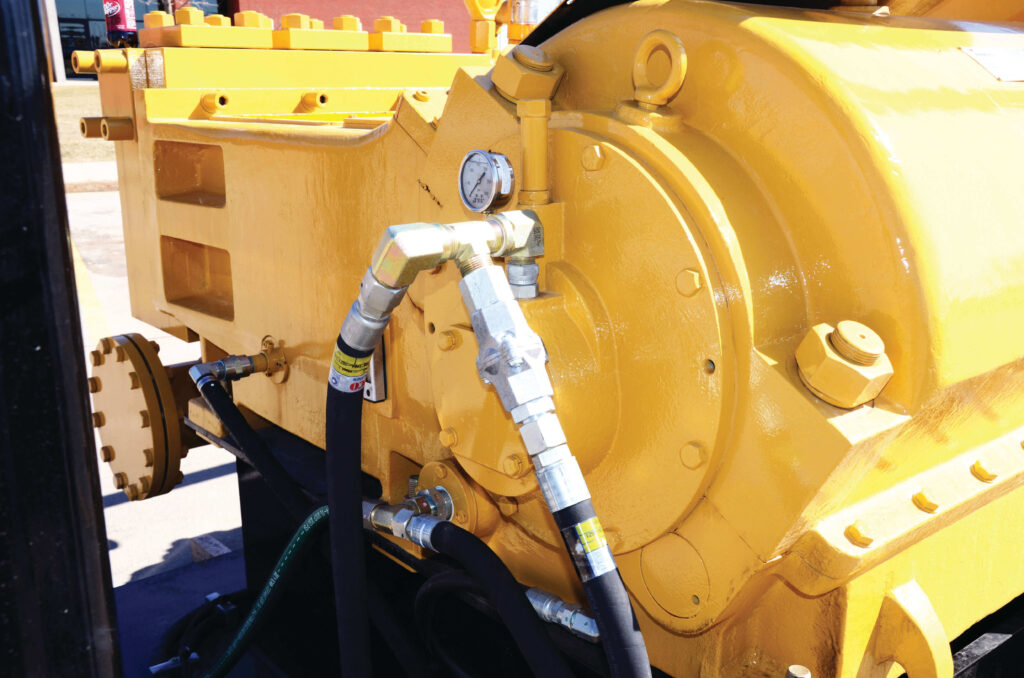

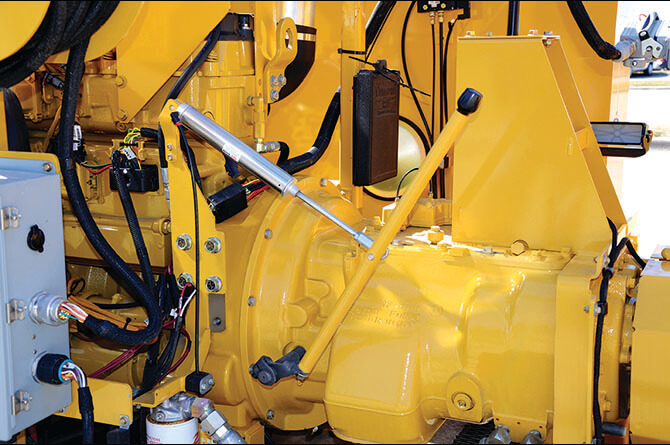

The SA400 is a high-pressure mud pump powered by a Tier 4i (EU Stage IIIB) or Tier 3 (EU Stage IIIA) engine. It features an engine-mounted lubrication pump to provide constant flow through the system at any pump speed. During drill rod makeup/breakout, a clutch with continuous duty throw-out bearing allows extended clutch disengagement and a suction inlet valve suspends charged flow.

Add to quote
Categories: ,

Description

FEATURESDOWNLOADS

Features

Remote pendant control

A remote pendant control allows the operator to place control where it makes sense for them.

Light shielding

The SA400 features light shielding – each panel weighs less than 50 lb (22.8 kg) – making maintenance a one-person task.

Liner wash tank

A liner wash tank integrated into the machine’s design eliminates the need for extra water containers or electricity when running the pump.

Specs

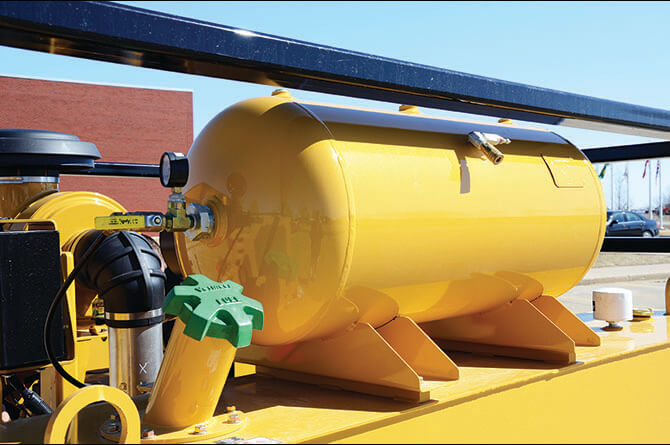

Air Tank Volume

113.6 L

MAX FLOW RATE

2082 L/min

Gross Horsepower

Diesel 261 kw
