HG400 Horizontal Grinder

Capable grinder with a small footprint

The Vermeer HG400 is an entry-level small horizontal grinder that is poised to redefine industry standards in terms of simplicity, efficiency and reliability. Designed with an initial focus on customers in the international emerging markets, the HG400 turns a variety of materials into valuable commodities. Equipped with a 97-kW (130-hp) Cummins Tier 3 Engine, the HG400 horizontal grinder can process materials like compost, pallets, construction debris and logs with efficacy—suitable for industries ranging from mulching to recycling and beyond. Its compact design features a 7-ft (2.13-m) high folding discharge conveyor that allows for ease of transportation of the machine.

Description

Features

Folding discharge conveyor

The 7-ft (2.13-m) folding discharge conveyor can be manually folded to fit into a container, making transportation easier.

Sideload screen design

Convenient dual-screen side-load design results in easier changes, allowing for product sizing adjustments to be made in less time.

Steel infeed conveyor chain with dual-driven roller

The steel infeed conveyor chain offers durability, while a dual-driven infeed roller provides powerful pulling force to feed challenging materials.

Infeed table with flared walls

Wide, flared walls allow for hassle-free feeding, and the infeed tailgate can be lowered for extra length to support the feeding of longer materials.

Specs

Engine

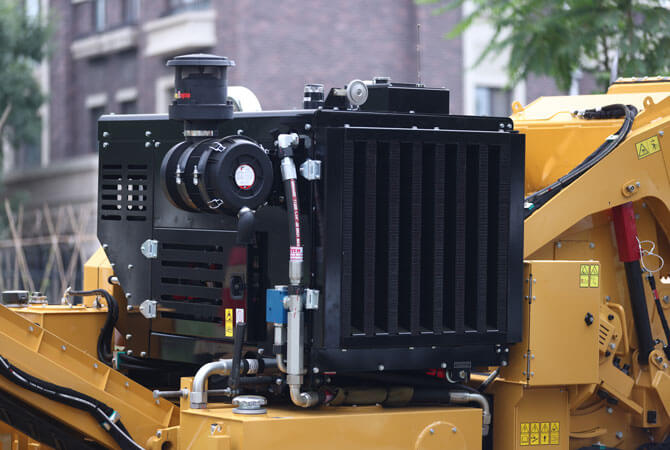

Foton Tier 3 97kW

Infeed Opening

40.5 cm x 63.5 cm

Drum Speed

1170 rpm
