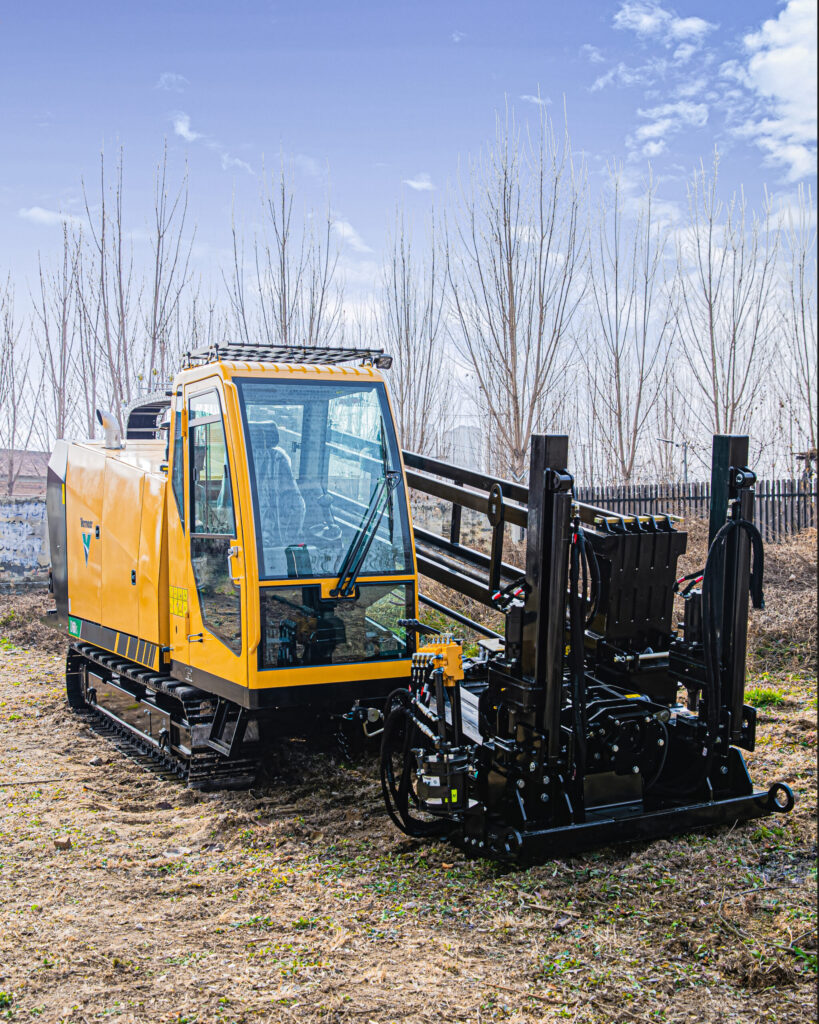

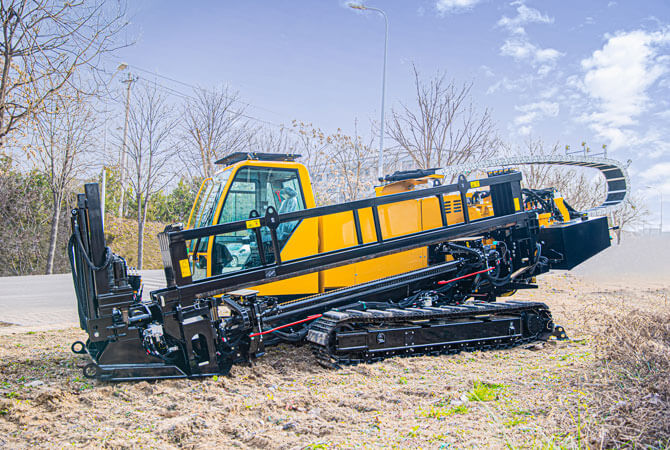

D60SG2 Horizontal Directional Drill

A drill designed specifically for operators in developing nations.

As the need for more infrastructure and utility installation grows, you can efficiently tackle fiber, electrical, gas, water, and other projects with the D60SG2. Manufactured in Tianjin, China, with the high-quality parts and components that Vermeer is known for, this drill is built tough for your jobsite conditions and high-quality performance.

Our commitment is to help you tackle jobs in tight spaces and challenging soil types. This new generation of D60SG2 drills can handle a variety of applications and jobsites to help maximize productivity and connect you to the world. It’s equipped with features that promote ease of operation and powerful torque and thrust to keep you drilling quickly and efficiently.

Add to quote
Categories: ,

Description

FEATURESDOWNLOADS

Features

Powerful torque and thrust

With an overall increase in power and torque, the D60S is one of the most powerful drills in its class. It has up to 60,000 lb (266.9 kN) of thrust and pullback and 9,000 ft-lb (12,202.4 Nm) of rotational torque, allowing operators to maximize their efficiency and productivity.

Ease of serviceability

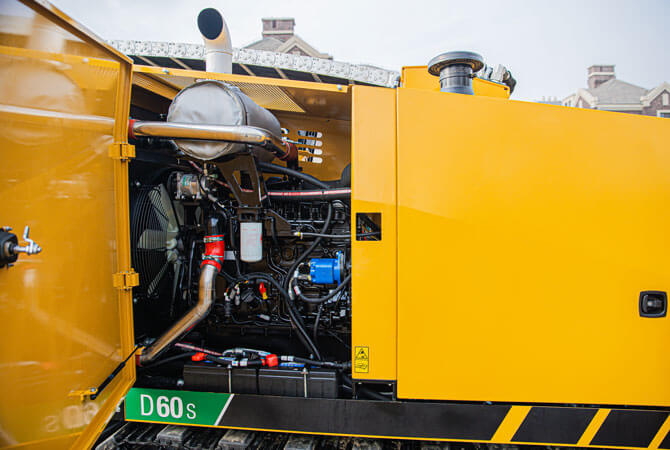

The D60S engine hood can pivot and is only one piece. This design provides convenient access to internal components for ease of serviceability and maintenance checks.

Three-Speed Gearbox

The three-speed gearbox helps improve overall drilling efficiency by allowing the operator to adjust the machine’s rotational torque to match different ground conditions.

Specs

Push/ Pull

266.9 kN

Spindle speed

136 rpm

Drive

Diesel 141.7 kW
