Description
Features

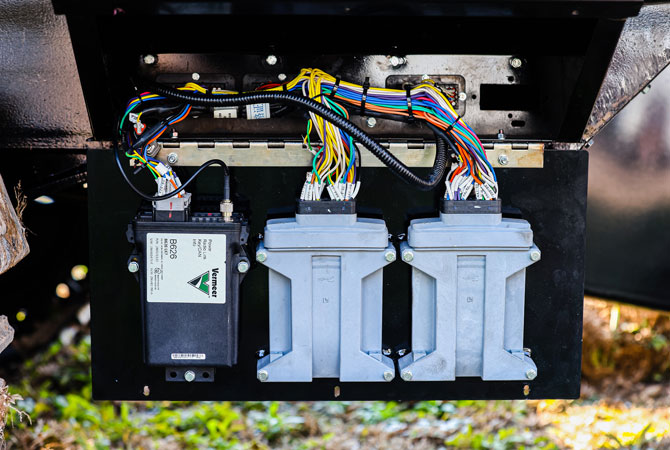

Upgraded Plus+1 control system

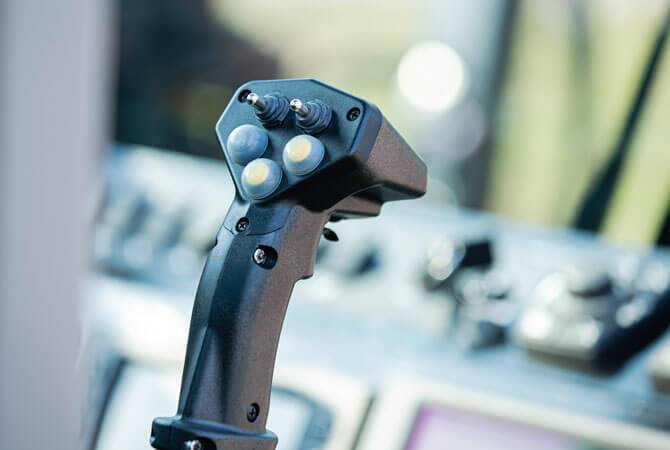

For precision and reliability, the control system in the D130S has been upgraded to Plus+1 software. This drill also includes the AutoSteer system, which automates certain drill head motions, helping you to set and adjust rotation duration and direction while maintaining a preset thrust pressure to get through hard ground conditions, which enables drilling consistency. To top it off, the updated console design helps provide a seamless, user-friendly bore path adjustment experience for the operator.

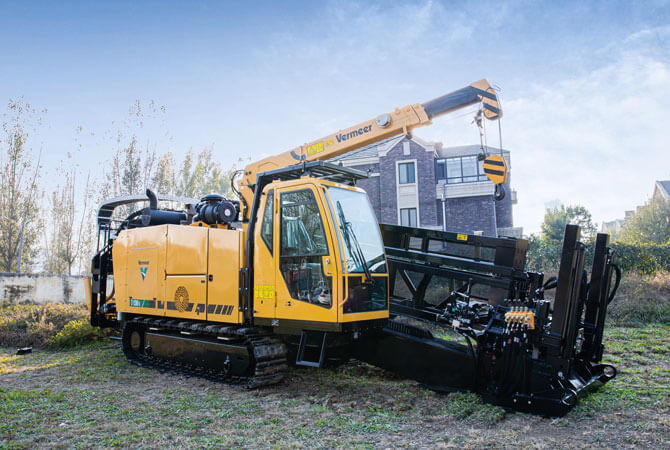

Compact footprint and ease of transport
Machine maneuverability is key to navigating tight, narrow jobsites. With a length of 33.5 ft (10.2 m) and width of 8.2 ft (2.5 m), the self-contained, compact design of the D130S allows for convenient transportation, navigability and minimized set-up time.

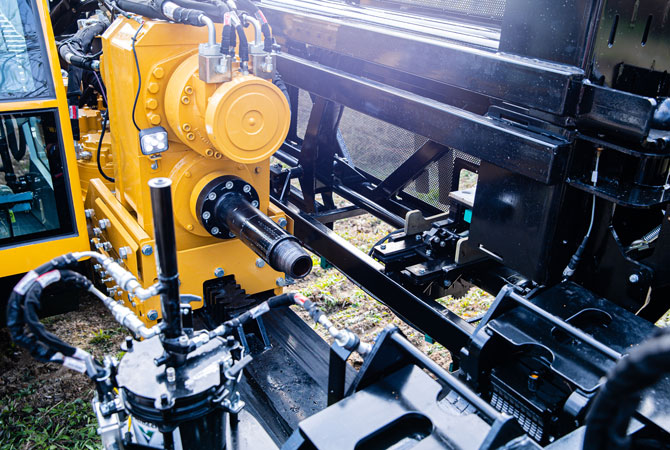

High-powered rotational torque and thrust
Consisting of 130,000 lb (578,200 kN) of thrust and pullback and 15,000 ft-lb (20,337 Nm) of rotational torque, the D130S is able to penetrate through different and difficult terrains efficiently and effectively.
Specs
578.7 kN
95 rpm
Diesel 193.9 kW
